(UL Style 1015) Polyvinyl Chloride Insulated Wire |
|
| UL
Style 1015 CSA Type TEW |
| |
 |
Applications |
 |
| |
 Internal wiring of electrical and eletronic equipment |
|
|
Characteristics |
|
For both UL and CSA |
| |
Flammability : VW-1
FT1 pass |
| |
Hi-Wrap wire(TA-SC) conductor is easily terminated, thus suitable for soldering, wrapping,clampping and connecting |
| |
Rating Temp. & Volt : UL 105℃, 600V, CSA 105℃ 600V |
|
| |
Acquired -F-
Mark |
|
| |
|
|

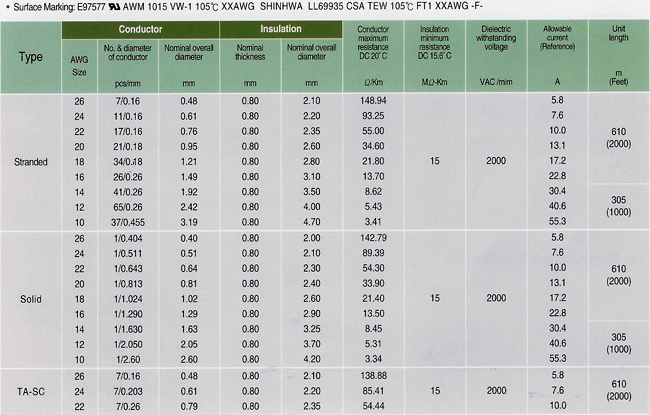

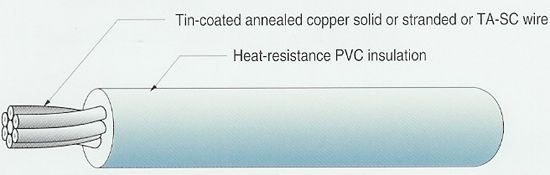

Construction & Specifications |
|
| |
 |
| |
 |
|
 Remarks |
| |
1) 인증범위(size
Range) : UL 38-9AWG, CSA 36-4/0AWG
2) TA-SC : Hi-wrap wire(일괄 석도선)
3) 허용전류(Allowable Current):허용전류는 참고치이며 주변온도 40℃, 최고허용온도 80℃ 가닥공간배선
(Ambient temperature 40℃, maximun allowable temperature (Single-wire in air)
4) 전선의 표면인쇄는 28AWG 이상에만 인쇄함
(Applicable to sizes of 28 AWG or larger)
5) 기본색상(Standard color)
- 흑색(Black),백색(White),적색(Red),청색(blue),황색(Yellow),갈색(Brown), 녹색(Green), 등색(Orange), 회색(Gray), 자색(Purple), 홍색(Pink)
|
|
|
| |
|
|
|
|
| |
|
|
