(UL Style 2405) PVC Insulated, shielded and PVC Jacketed Wire |
|
| UL
Style 2405 CSA TR-64 (SW, SB) |
| |
 |
Applications |
 |
| |
 Internal wiring of small electrical and eletronic equipment |
|
|
Characteristics |
| |
For both UL and CSA |
| |
Flammability : VW-1, FT1 pass |
| |
Hi-Wrap wire(TA-SC) conductor is easily terminated, thus suitable for soldering, wrapping and clampping and connecting |
| |
Rating Temp. & Volt : UL 80℃, 300V, CSA 90℃ 300V |
|
| |
|
|

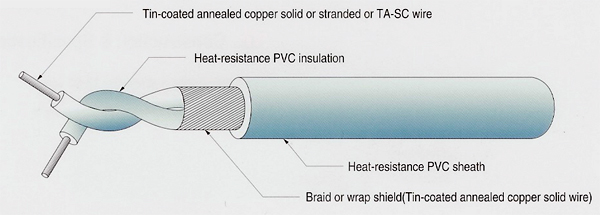

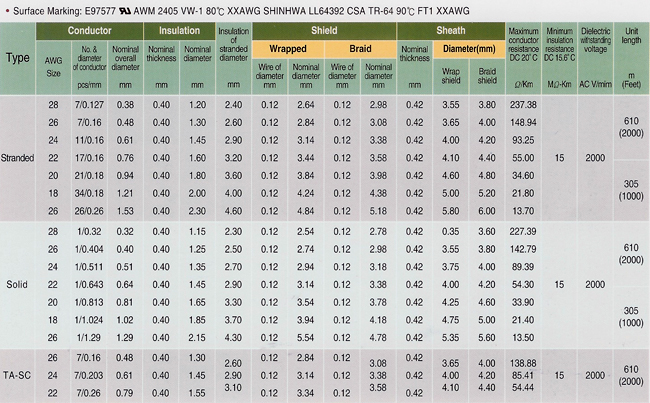

Construction & Specifications |
|
| |
 |
| |
 |
|
 Remarks |
| |
1) 인증범위(size Range) : UL 30-16 AWG
2) TA-SC : Hi-wrap wire(일괄 석도선)
3) 차폐 : 차폐는 횡권실드가 기본으로 제조되며, 편조차폐도 제조가능함.
(Shield : Wrapped shied is standard, but AL/PS Tape shield dimensions also given)
4) 절연체의 색상은 백색,적색이 기본입니다.(Insulation core Identification : white,Red)
|
|
|
| |
|
|
|
|
| |
|
|
